| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | CZ-F003 |
| Minimum Order Quantity: | 1 Piece |
| Price: | $7000-12000/pieces or Negotiable |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 1-15 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Set/ Month |
| Name: | Moving Walk Stafety Device | Angle: | 35° Escalator |
|---|---|---|---|
| Drive Type: | AC | Model: | Single Arrangement K Escalator |
| Warranty: | 12 Months After Shipping | Material: | Stainless Steel 304 |
| Product: | Single Arrangement K Escalator | Control System: | VVVF Elevator Control System |
| Height: | H≤6000mm | Traveling Height: | 1000≤h≤3700mm |
| Highlight: | 35 degree Moving Walk Escalator,VVVF Moving Walk Escalator,sidewalk escalator for Supermarket |
||

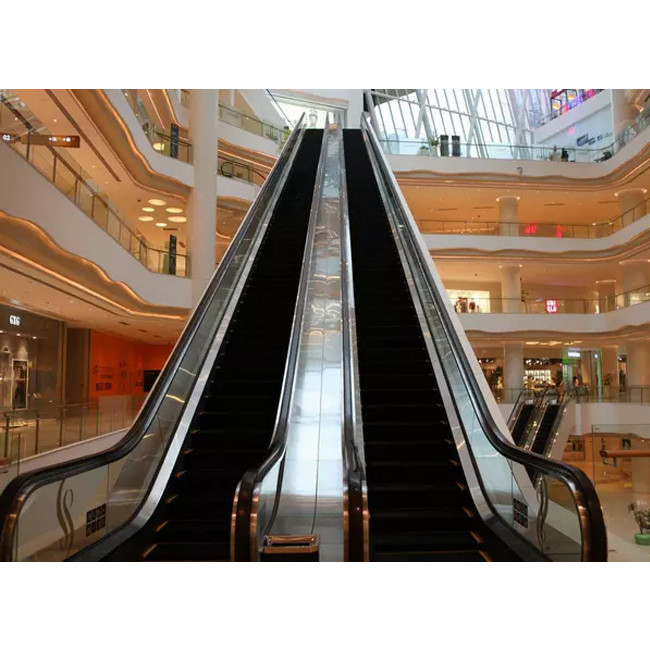

Moving Walk Escalators and Sidewalks Escalator Running Indicator Weight of Escalator for Supermarket
Product Feature and Application
High efficiency & energy-saving
Customer can choose VVVF control to control running speed, the energy saving performance is obvious, it can prolong products' life and reduce the operation cost.
Space saving
Compact structure, ease strain: Short pallets can greatly reduce space span, which can flexibly fits the building structure and save the construction space for the customer, it comprises H version(horizontal), | version (incline) and C version (compact) can let the customer have a free choice on his original layout.

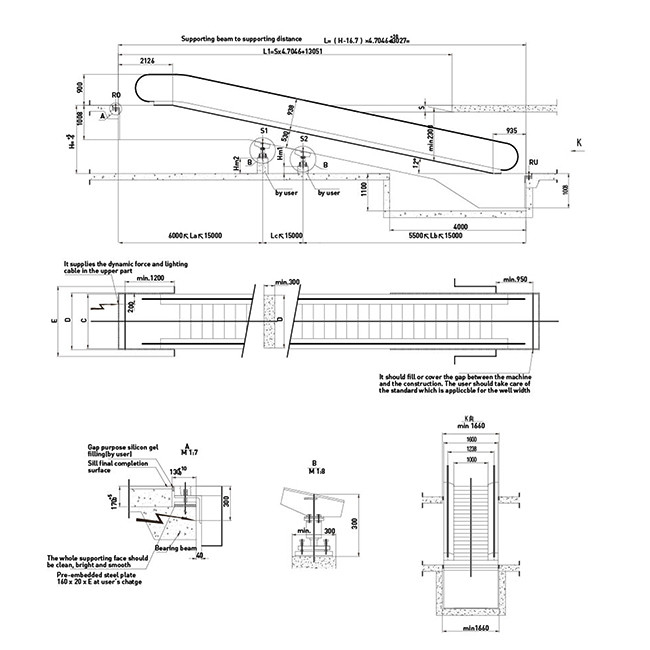

| The construction supporting force inc ludes the viration load | ||||||||
| No intermediate supporting | One intermediate supporting | Tow intermediate supporting | ||||||
| Ro=0.0045XL+13 | Ro=0.0045XLa+13 | Ro=0.0045XLa+13 | ||||||
| Ru=0.0045XLb+7 | Ru=O.0O45XLb47 | |||||||
| Ru=0.0045XL+7 | S1=0.00585X(La+Lb) | S1=0.00585XLa+Lc) | ||||||
| S2-0.00585X(Lb+Lc) | ||||||||
| Travelling height | lntermediate supporting | La(mm) | Lb(mm) | Lc(mm) | lntermed iate supporting height | |||
| From | To | S1 | S2 | |||||
| 1601 | 2663 | - | - | - | - | - | Hm1 | 0.2126xLb-1051 |
| 2664 | 4141 | 1 | - | L-7000 | 7000 | - | ||
| 4152 | 5851 | 1 | - | 15000 | L-15000 | - | Hm2 | 0.2126x[Lb+Lc)-1066 |
| 5852 | 6000 | 1 | 1 | 15000 | 7000 | L-22000 | ||
| Model | Travelling heightimm) | Rated speed | Rated load | Inclination | Motor pawer | Almm) | B[mm) | Clmm) | D[mm) |
| SMEH(800/0°) | 80000 | 0.5 | 6750 | 0 | 5.5 | 800 | 1038 | 1400 | ≥1460 |
| 80000＜L≤130000 | 8 | ||||||||
| 130000＜L≤150000 | 11 | ||||||||
| SMEH(1000/0°) | 70000 | 0.5 | 9000 | 0 | 5.5 | 1000 | 1238 | 1600 | ≥1660 |
| 70000＜L≤110000 | 8 | ||||||||
| 110000＜L≤150000 | 11 |
1). Emergency stop button
When the button is pressed, the (moving walkways) will stop running.
2). Skirt panel protection
When the foreign object is caught in between the skirting and steps, escalator (moving walkways) will automatically stop running.
3). Brake protection
When the lack of electricity or any of the security of the whole device moves, the brake device through the spring elastic force to the brake function to take effect, the escalator (moving walkways)stops running.
4). Safety inspection switch
Repair and maintenance, the safety device to prevent the start of the escalator.
5). Step illumination
Escalator upper and lower ends of the lower part of the cascade equipped with lighting to alert the boarding people pay attention to safety.
6). Alarm bell starting device
Escalator when the alarm sounded to alert the safety of passengers.
7). Control device for handrail breakage
When the handrail fracture, the escalator (moving walkways) will stop running.
8). Skirt panel brush
Skirting and steps in with a brush between the shoe does not hit the passenger skirting
1,Step chain-roller inbuilt [standard)
The roller has been internally installed in the specially-designed roller step chain.It can effectivelyfulfill the reduction of the noiseduring the drivingprocess and bring about a more smooth and quietoperation.
2,Handrail inlet [standard)
Novel, trendy and attractive design for the entrance andexit of the handrail belt makes the escalators more liveand amicable.
3,Vertical type traction machine (standard)
Higher transmission effectiveness, lower noise andlonger service hours.
4,Moving directions and failure display [standard)
By means of observing the digital readings on the displaying plates mounted on both sides of the skirtsboard at the entrance andexit of the escalator [or movingwalks), the maintenance work can be made promptly andeasily.
5,Illumination for the passengers (standard)
Green light softly beams out from the space betweenthe engaged teeth of the two neighboring steps toremind the passengers tobe aware of the levelsections both at the entrance and exit, resulting inincreased security for the passengers.
6,Emergency brake device (optional)
The skirt board illumination arranged along side thesteps' arc moving contour makes the passengers feelmore comfortable and safe.
7,Heating device loptional
Each escalator usually installs three heating devices.One is beside the host in the upper machine room. Itmainly heats the host.The second is installed in the midescalator.And the third is in the lower part. It mainlyheats he whole escalator.
8,Variable frequency driving-vvF(optional)
When there's no load, the escalator [or moving walk)moves at low speed and when the approach of a passenger is detected, it restores to the normal speed.This shows conspicuous energy saving effects, saving upto 40% of power.
9,Electric automatic lubrication loptional)
Controlled by PC, the lubricating signals are emittedafter a preset period when the hydraulic pump isautomatically activated to conduct the lubrication.
10,Running direction indication loptional)
The running direction and forbidden display mark havebeen placed in the inlet and outlet of the handrail.Theobvious running or forbidden instruction ensures thesafe riding of the passengers with great ease.
The application of a series of intelligent technologies to Tenau villa not only brings you comfort but also health.
We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
