| Place of Origin: | Shanghai |
|---|---|
| Brand Name: | ZANFENG |
| Certification: | ISO9001 |
| Model Number: | CHW 320 |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing, Fumigation-free wooden cases. |
| Delivery Time: | 5~10 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Piece/Pieces per Month |
| VAC: | 380V | Roping: | 2:1 |
|---|---|---|---|
| Packaging: | Single | Load: | 630-1150kg |
| Speed: | 0.5-1.75m/s | Wheel Diameter: | 320mm |
| Duty: | S5-40%ED | Starts Per Hour: | 180st/h |
| Maximum Static Load: | 3500kg | Weight: | 300kg |
| Highlight: | Elevator Traction Machine 380V,Elevator Traction Machine 3500kg,1.75m/s gearless lift machine |
||

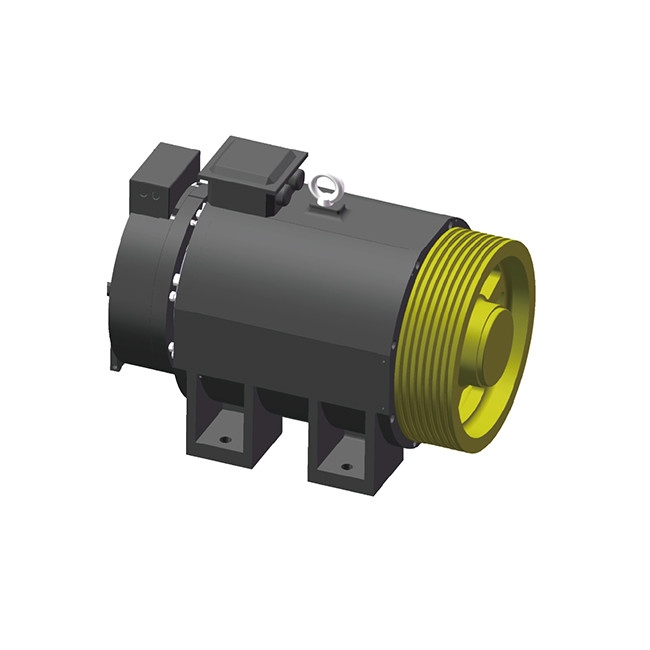

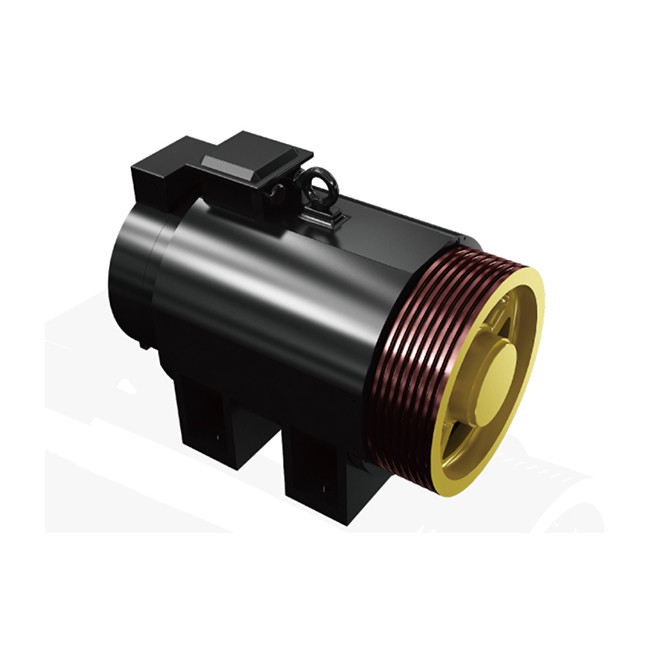

380V Elevator Parts Elevator Parts Max. Static Load 3500kg Elevator Gearless Traction Machine
REMARK
The machine can also be used for machine roomless
The above is recommended value of cut angleits optional according to practical conditior
MODEL RECOMMENDED FORM
| Elv. Load(kg) | Elv. Speed(m/s) | |||||||||
| 0.4 | 0.05 | 0.63 | 1.0 | 1.5 | 1.6 | 1.75 | 2.0 | 2.5 | 3.0 | |
| 320-450 | CHW200 CHW200A CHW100 CHW87 | |||||||||
| 630 | CHW320 CHW400 | |||||||||
| 800-1150 | CHW320 CHW400 | |||||||||
| 1350-1600 | CHW400L | |||||||||
| 2000-3000 | CHW450 | |||||||||

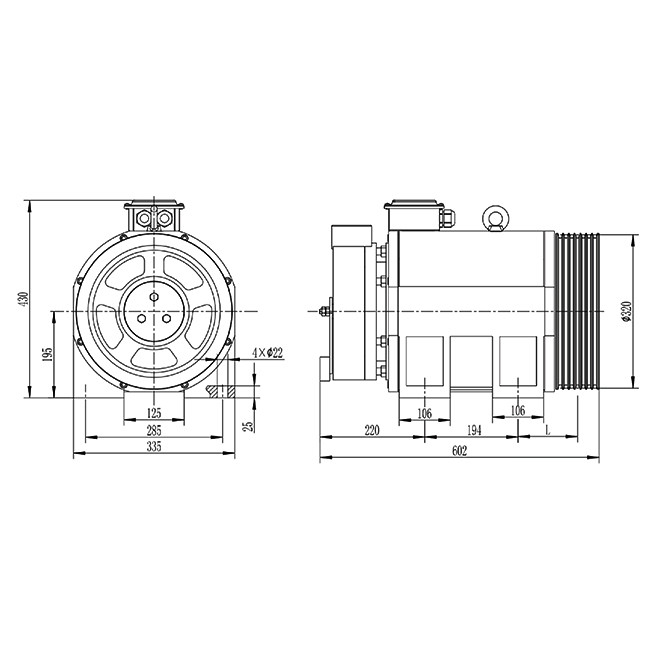

SPEC.SHEET
| Type | Elv Load | ElvSpeed | Sheave Dia | Sheave Groow | Current | Power | Speed | Freq | Torque | Poles | L | Undercut Angle |
| kg | m/s | mm | A | KW | r/min | Hz | N.m | mm | . | |||
| CHW320-630-050 | 630 | 0.5 | 320 | 5xФ8x12 | 7 | 2.1 | 60 | 12 | 340 | 24 | 124.5 | 90 |
| CHW320-630-063 | 630 | 0.63 | 320 | 5xФ8x12 | 7 | 2.7 | 75 | 15 | 340 | 24 | 124.5 | |
| CHW320-630-100 | 630 | 1 | 320 | 5xФ8x12 | 10 | 4.2 | 119 | 23.8 | 340 | 24 | 124.5 | |
| CHW320-630-150 | 630 | 1.5 | 320 | 5xФ8x12 | 16 | 6.4 | 179 | 35.8 | 340 | 24 | 124.5 | |
| CHW320-630-160 | 630 | 1.6 | 320 | 5xФ8x12 | 16 | 6.8 | 191 | 38.2 | 340 | 24 | 124.5 | |
| CHW320-630-175 | 630 | 1.75 | 320 | 5xФ8x12 | 16 | 7.4 | 209 | 41.8 | 340 | 24 | 124.5 | |
| CHW320-800-050 | 800 | 0.5 | 320 | 6xФ8x12 | 9 | 2.7 | 60 | 12.0 | 430 | 24 | 124.5 | |
| CHW320-800-063 | 800 | 0.63 | 320 | 6xФ8x12 | 9 | 3.4 | 75 | 15.0 | 430 | 24 | 124.5 | |
| CHW320-800-100 | 800 | 1 | 320 | 6xФ8x12 | 13 | 5.4 | 119 | 23.8 | 430 | 24 | 124.5 | |
| CHW320-800-150 | 800 | 1.5 | 320 | 6xФ8x12 | 20 | 8.1 | 179 | 35.8 | 430 | 24 | 124.5 | |
| CHW320-800-160 | 800 | 1.6 | 320 | 6xФ8x12 | 20 | 8.6 | 191 | 38.2 | 430 | 24 | 124.5 | |
| CHW320-800-175 | 800 | 1.75 | 320 | 6xФ8x12 | 20 | 9.4 | 209 | 41.8 | 430 | 24 | 124.5 | |
| CHW320-1000-050 | 1000 | 0.5 | 320 | 7xФ8x12 | 11 | 3.4 | 60 | 12.0 | 540 | 24 | 124.5 | 85 |
| CHW320-1000-063 | 1000 | 0.63 | 320 | 7xФ8x12 | 11 | 4.2 | 75 | 15.0 | 540 | 24 | 124.5 | |
| CHW320-1000-100 | 1000 | 1 | 320 | 7xФ8x12 | 16 | 6.7 | 119 | 23.8 | 540 | 24 | 124.5 | |
| CHW320-1000-150 | 1000 | 1.5 | 320 | 7xФ8x12 | 25 | 10.1 | 179 | 35.8 | 540 | 24 | 124.5 | |
| CHW320-1000-160 | 1000 | 1.6 | 320 | 7xФ8x12 | 25 | 10.8 | 191 | 38.2 | 540 | 24 | 124.5 | |
| CHW320-1000-175 | 1000 | 1.75 | 320 | 7xФ8x12 | 25 | 11.8 | 209 | 41.8 | 540 | 24 | 124.5 | |
| CHW320-1150-050 | 1150 | 0.5 | 320 | 8xФ8x12 | 12 | 4 | 60 | 12.0 | 630 | 24 | 124.5 | |
| CHW320-1150-063 | 1150 | 0.63 | 320 | 8xФ8x12 | 12 | 4.9 | 75 | 15.0 | 630 | 24 | 124.5 | |
| CHW320-1150-100 | 1150 | 1 | 320 | 8xФ8x12 | 18 | 7.9 | 119 | 23.8 | 630 | 24 | 124.5 | |
| CHW320-1150-150 | 1150 | 1.5 | 320 | 8xФ8x12 | 30 | 11.8 | 179 | 35.8 | 630 | 24 | 124.5 | |
| CHW320-1150-160 | 1150 | 1.6 | 320 | 8xФ8x12 | 30 | 12.6 | 191 | 38.2 | 630 | 24 | 124.5 | |
| CHW320-1150-175 | 1150 | 1.75 | 320 | 8xФ8x12 | 30 | 13.8 | 209 | 41.8 | 630 | 24 | 124.5 |
We offer a contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD and TFT displays etc.
