Non Touch Hand Gesture Calling Landing System Lift Cop Panel Car Operating


Elevator Gesture Call Non Touch Hand Gesture Calling Landing System

Do you worry about the covid-19 virus when you call the lift? Do you ever used the toothpick to call the lift or wear the gloves to call the lift? We have a new product can meet your requirement which is the lift call button. It can be installed in the lifts already existed or be installed in the new lifts. It is compatible for any branch elevator. And it is suitable for commercial elevator and home elevator.

Advantage

1. No contact, reducing the risk of infection

2. Suitable for all elevators, easy to install

3. Durable

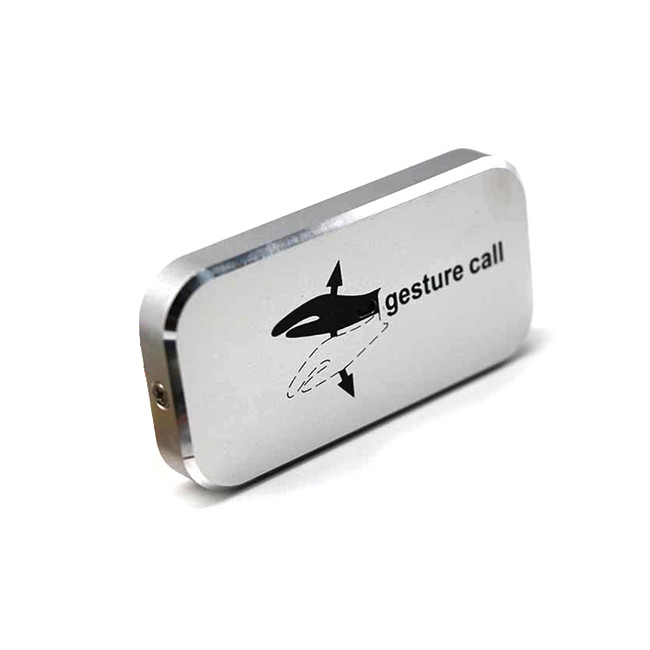

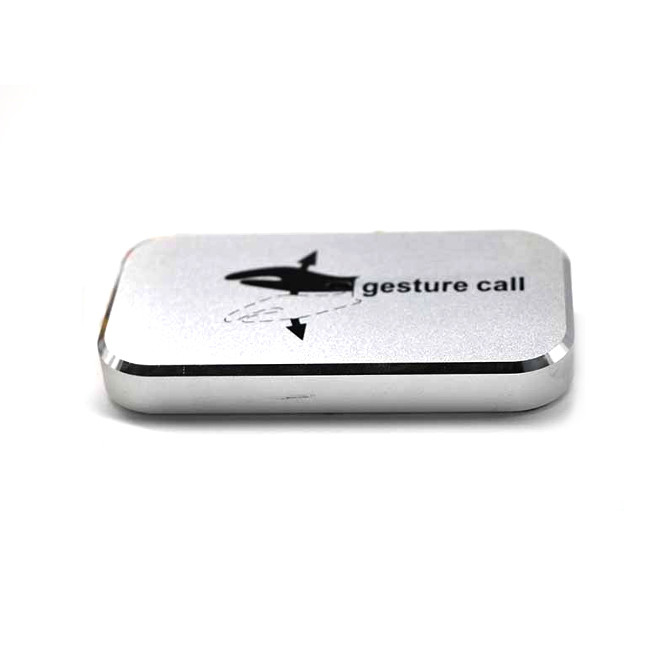

Hand Gesture Calling Landing System

Functions

1.Incorporate the elevator call button without destroying the original elevator functions and circuits.
2.Reach out and shake your hands to call the elevator without touching the elevator buttons. It can help you to enjoy the elevator experience. Also it can help to avoid contact with bacteria or viruses on the buttons to protect the health of passengers.


Power Interface

Product Parameters
1, Sensing Method: infrared motion sensing of human hand.
2, Sensing Objects: human hands, gloves
3, Gesture Effective Range: distance from 5 to 15cm; angle: ± 30 degree horizontally forward of the center of the device
4,Power Voltage: input rated DC 12-24V/
5, Device Consumption: Maximum 1 W.
6, Relay Pull-in time: 2 seconds
7, Available Time Interval between up calling and down calling: 1 second
8, Working Environment Temperature: -20°℃~60℃.
9, Storage Temperature: - 20℃~70℃.

Operation Method

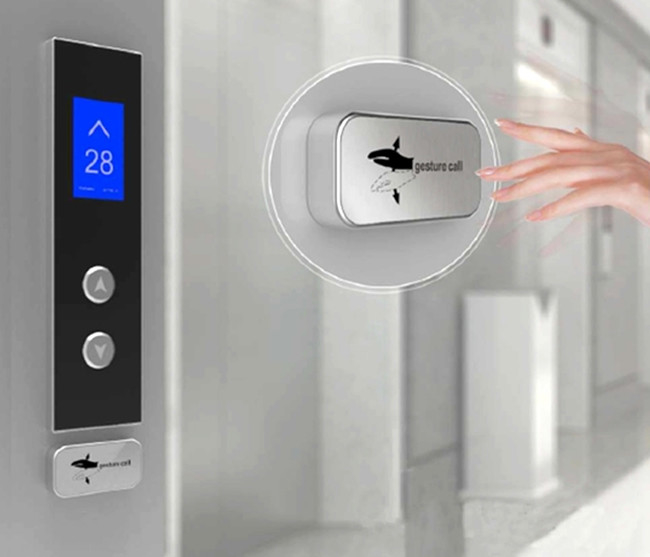

1.Place your hand 5 to 15cm from the front of the “Hand Gesture Calling Landing System” device and swWing upwards to trigger the “Up” button.
2.Place your hand 5 to 15cm the front of the “Hand Gesture Calling Landing System device and swing downwards to trigger the “Down” button. 3, It is available even wearing the gloves,
